All products
SVC/TND

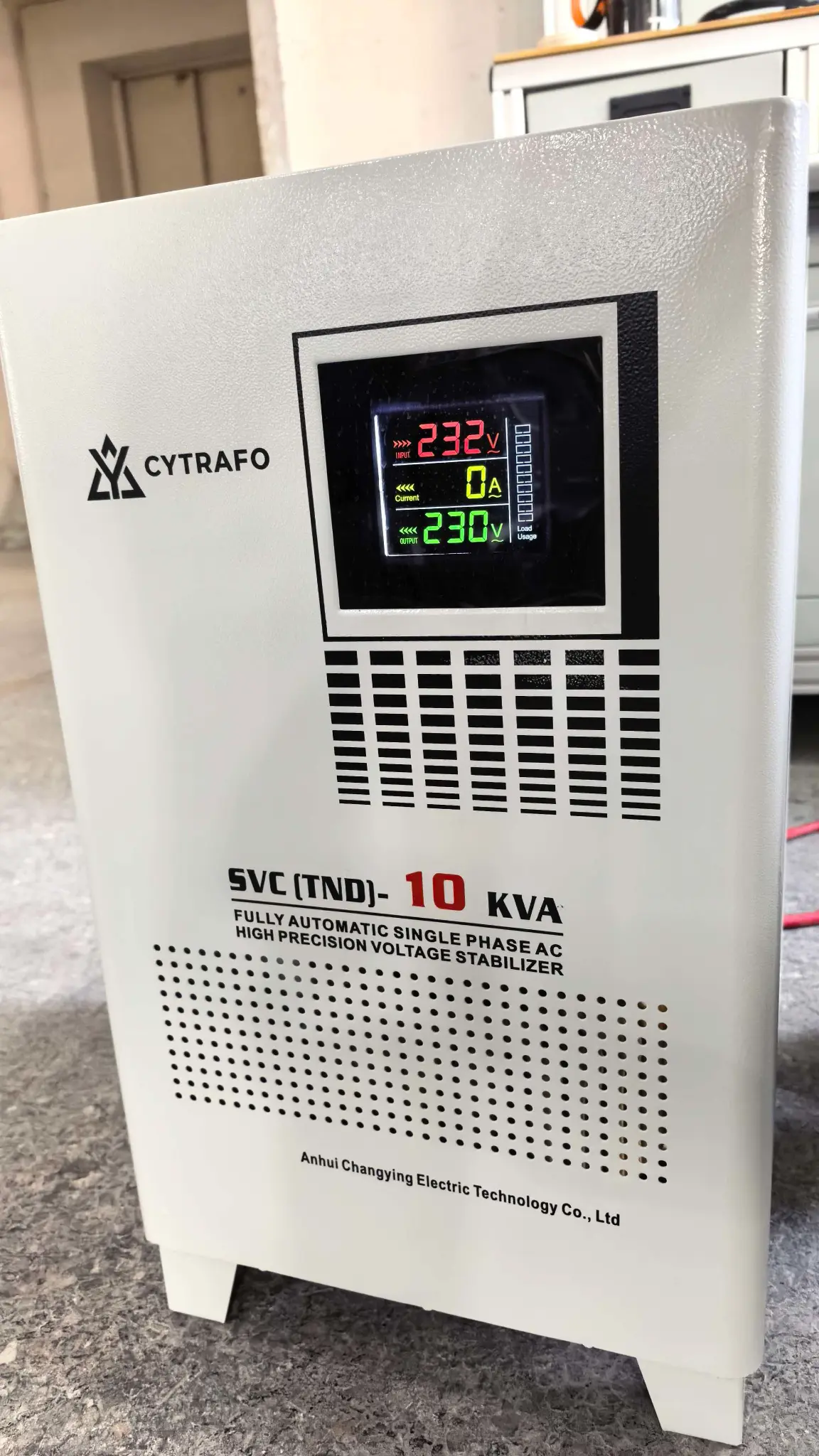

SVC/TND 10kVA Single-Phase Servo Voltage Stabilizer
CYTRAFO SVC/TND 10kVA single-phase servo voltage stabilizer shown in the supplied product photo. The SVC/TND platform supports 140–250V input, 220V/230V output and servo-motor regulation.
- Capacity
- 10kVA
- Phase
- Single phase
- Accuracy
- ±2%/±3%
- Control
- Servo motor
Product highlights
Designed for dependable regulation
Rated capacity: 10kVA
Input voltage: 140–250V
Output voltage: 220V/230V
Frequency: 50/60Hz
Phase: Single phase
Catalogue data
Technical specifications
Final values are confirmed against the selected model and project configuration.
Rated capacity10kVA
Input voltage140–250V
Output voltage220V/230V
Frequency50/60Hz
PhaseSingle phase
Accuracy±2%/±3%
Control typeServo motor
Selection FAQ
Before requesting a quotation
What information is needed to select this voltage stabilizer?
Please provide the measured input-voltage range, required output voltage, connected load, phase, frequency and installation environment. CYTRAFO confirms the final configuration before production.
Can the final configuration be confirmed for a local power system?
Yes. Input range, output voltage and protection requirements are confirmed against the project power conditions and connected equipment.
